DOCS 200

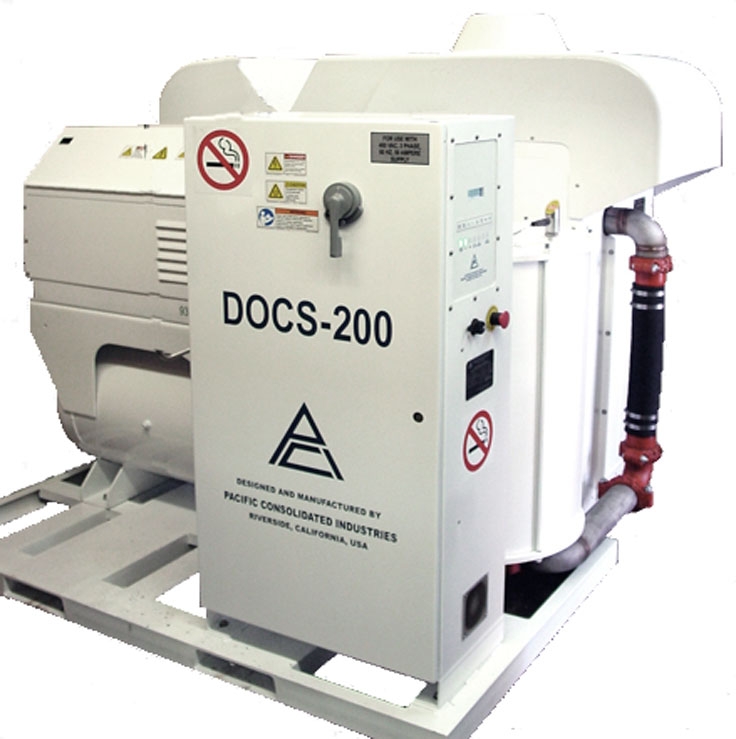

Deployable Oxygen Concentration System (DOCS) 200 VSA is a lightweight, mobile oxygen generator that can be deployed and setup with minimal effort.





DOCS 200



Advantages



  • Lowest power consumption and maintenance cost in the market place
  • Very compact & versatile
  • Provides 4m3 per hour of USP 93% oxygen
  • Remote system diagnostics capability
  • Can be delivered as turn-key system, eliminating on-site installation
  • FDA 510(k) clearance


Characteristics



Value / Description
Discharge flow rate*   200 lpm | 12 m3 per hour | 840 lbs per day | 425 scfh
O2 purity @ discharge flow rate   93% +/- 3%
O2 output pressure   5 - 8 psig
Operating temperature   0°F to 120°F
Operating power   460 VAC, 3-phase, 60 Hz or
380 VAC, 3-phase, 50 Hz

Power consumption		   7.5 kW @ 5 psig output pressure
9.5 kW @ 55 psig output pressure
10.0 kW @ 100 psig output pressure
Amperage (estimate)   12 (32) amps average (maximum) draw at 460 VAC
15 (40) amps average (maximum) draw at 380 VAC
Base dimensions
Outside enclosure skid dimensions		   70" L x 73" W x 66" H
74" L x 74" W x 72" H
Weight of base unit (estimate)   3050 lbs (does not include booster)
Average operating cost @ 55 psig**   $0.20 - $0.30 per 100 scf
$0.07 - $0.11 per m3
*For applications requiring lower purity of 90%, flow rate increases to 240 lpm
**Measured at USD 0.1 per kWh cost of electricity
Note: Performance parameters stated at standard conditions
